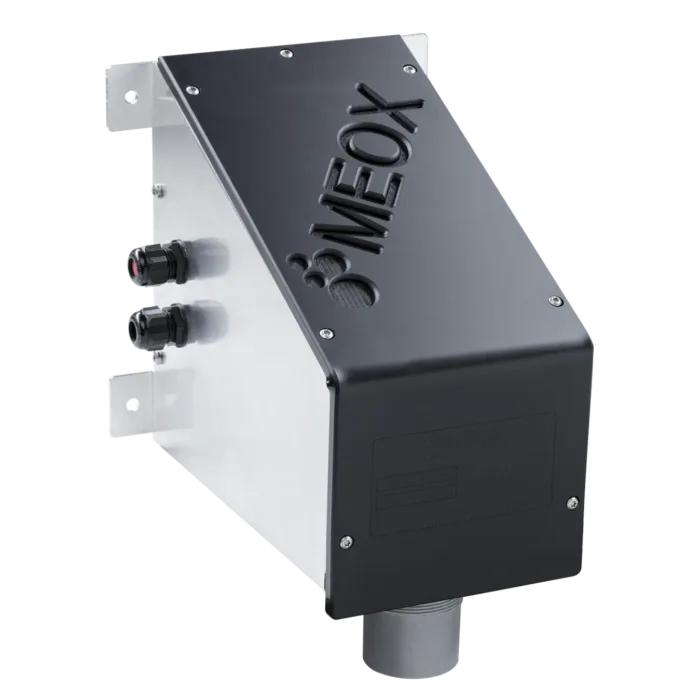

Guardian xM Mass meter

Mass meter sensor for sliding and hinged hatches with a one step opening.

With mass meters from MEOX you get a complete monitoring system for all silos on the feed barge. The sensors are connected to a central unit on the barge that continually sends mass data to the cloud and into MEOX Cloud.

The system can be customized for all types of silos, and calculates amounts in tonnes based on the geometry of the silo and the type of feed in use.

Log in and see realtime and historical data for all silos.

Read more about MEOX Cloud here..

MEOX offers a modern product system based on new IoT technologies and a well liked and simple user interface.

If you have any questions about the product please contact us by phone or e-mail.

Additional information

Dimensions 30 × 15 × 22 cm
Readout

MEOX Cloud, cloud.meox.no

Readout interval

Std 10. min. Can be changed from continuous measurement and up via SMS / Data

Alarms

Default per website, can be opened for mail / SMS notification

Measurement point

One meter per silo

Avstand

0,6 – 15 m

Tilkobling

MEOX Styreskap, databuss, RS-485

Spenning sensor

12 V likestrøm, mates fra styreskap

Spenning styreskap

230 V vekselstrøm (Batteridrift mulig pga. lav effekt)

Effekt per sensor

< 1,5 W

Kompansering

Temperaturkompansert

Measurement method

Echo sounder / Dopters

Interferens

Sterkt anti-interferens filter

Blindsone

0,6 m

Nøyaktighet sensor

0,3 % av måleområde

Nøyaktighet masse

Typisk innen 5 % av siloens volum

Materiale

ABS og aluminium

Operating temperature

-10 – 40 C

User friendly monitoring

MEOX Cloud is our web solution for monitoring of values from all our products and is included for free. Log in from anywhere and get a full overview.

  • Very user friendly
  • See realtime data for all
  • See historic data
  • Follow trends
  • Configure alarm limits
  • Download reports

Read more

Wireless

All our products are completely wireless and uses the standard GSM-network for cheap, fast and secure communication.
